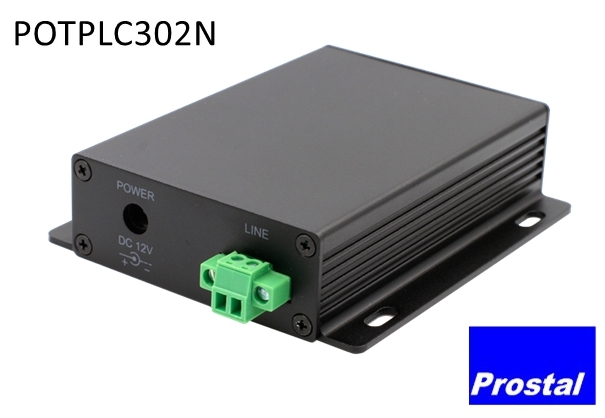

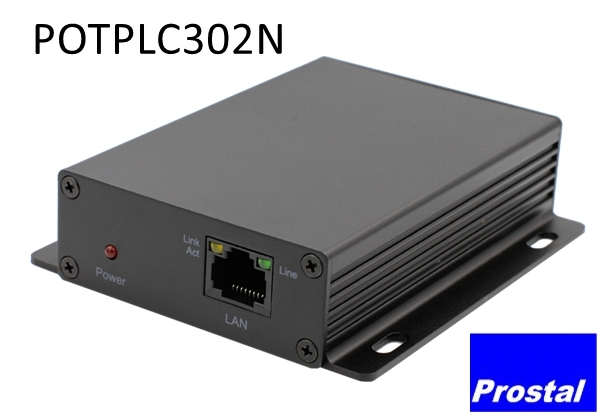

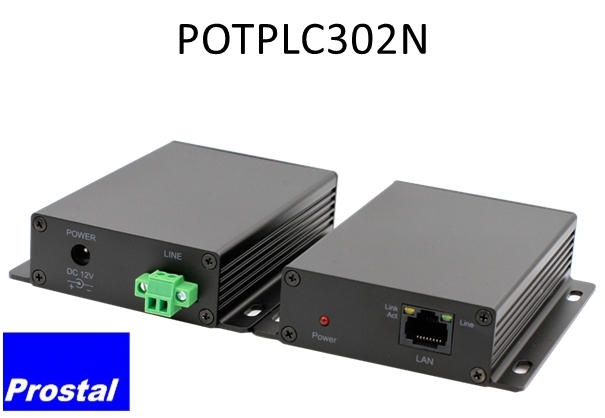

POTPLC302N is an innovative device that carries standard Ethernet signals over existing two-wire, twisted pair, telephone, or power lines. Designed for minimal setup and maximum efficiency, it's a turnkey solution for anyone seeking high-speed, stable communication in large or complex network environments.

Key Features & Benefits

1. Wide Reach & High Throughput

● Transmissions stretch up to 600 meters.

● Support full duplex 100Mpbs fast Ethernet.

2. Flexible Connection Modes

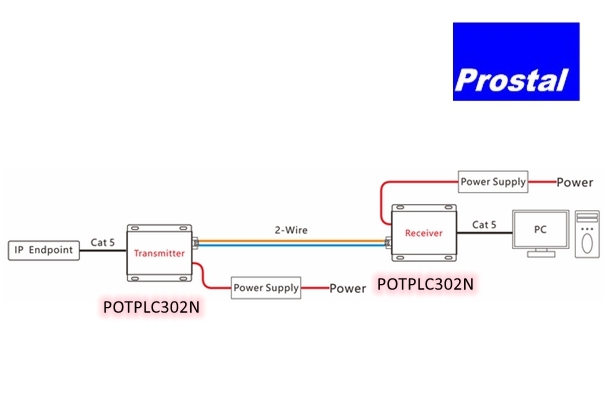

● Supports both point-to-point and multi-point (star or daisy-chain) setups.

● Streamlined cabling and easy scalability translate to less environmental impact and lower installation costs.

3. True Plug-and-Play Operation

● Effortless deployment—simply connect and let the unit operate in transparent transmission mode.

● No extra debugging or specialized knowledge needed to get your system online.

4. Stable & Interference-Resistant

● Utilizes OFDM carrier modulation to combat signal noise and maintain reliable data flow.

● Adheres to IEEE1901 and IEEE802.3 standards, ensuring compatibility across diverse network hardware.

5. Versatile Power Options

● Accepts a wide input range of 12–24 VDC, making it easy to draw power from local sources.

● Low power consumption helps reduce operating expenses and simplifies power sharing with other devices.

6. User-Friendly Design

● Standard desktop or wall mounting for versatile installations.

● Includes Phoenix terminals and RJ45 ports for hassle-free connections in professional or industrial settings.

Ideal Applications

● Security and Surveillance: Perfect for deploying IP cameras or access control systems in large complexes where legacy wiring is abundant.

● Video Intercom Integration: Efficiently send data and power over existing lines, streamlining residential or commercial intercom solutions.

● Branch and Remote Office Networking: Cost-effective for connecting remote terminals, ATMs, or small offices to a central hub.

● Industrial Automation: Extend network control to production lines, warehouses, or other large-scale operations without performance loss.
