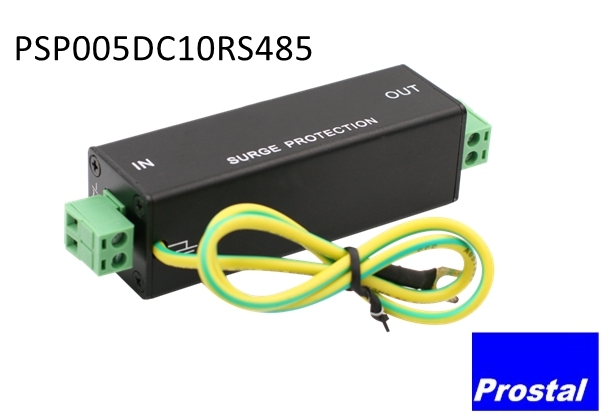

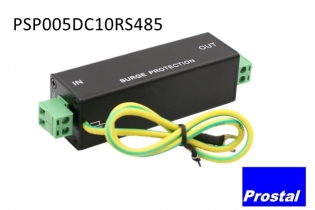

PSP005DC10-RS485 is Control Signal Surge Protector. It is designed and manufactured according to IEC lightning protection standards. It adopts a multi-stage discharge component design, effectively suppressing and dissipating surge currents in weak current control circuits.

Installation

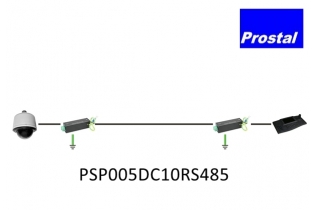

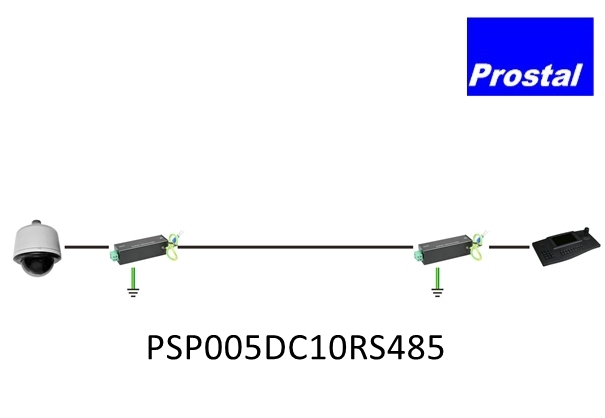

No external power supply is required. Install in series by connecting the protected device to the OUT port, the network line to the IN port, and the ground wire to a grounding busbar or point.

When a surge enters, excess voltage is absorbed and discharged through primary discharge, voltage limiting, and voltage clamping, ensuring only a safe voltage reaches network devices.

Product Features

1. Multi-Component Surge Protection – Built-in gas discharge tube, varistor, and TVS diode for comprehensive protection.

2. Ultra-Fast Response – Reaction time of up to 1ns ensures rapid surge suppression.

3. High Surge Capacity – Can handle surge currents up to 5kA.

4. Durable Aluminum Alloy Housing – Lightweight, aesthetically designed, and optimized for heat dissipation.

5. Compact Design – Ideal for installation in limited spaces.

Applications

Ideal for communication systems, networked alarm systems, industrial control, security surveillance, and other weak current systems.

Suitable for RS-485 PTZ cameras, alarm devices, sensors, and related equipment requiring surge protection.
