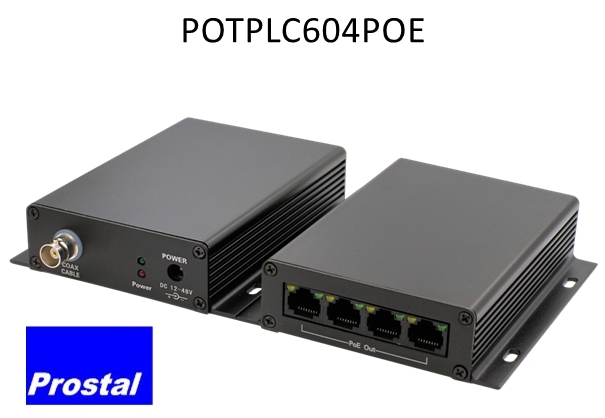

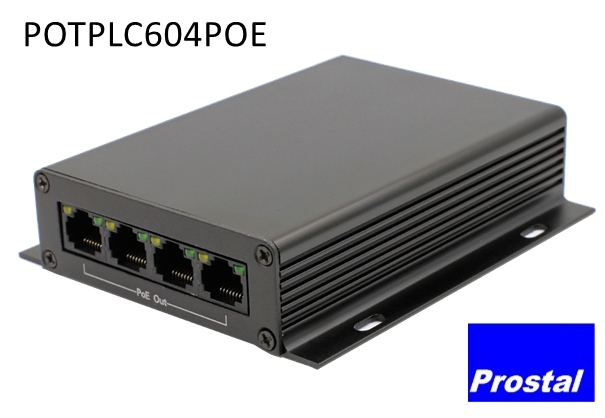

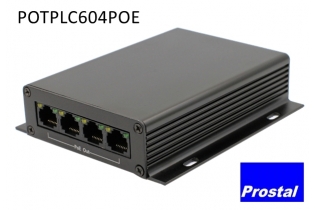

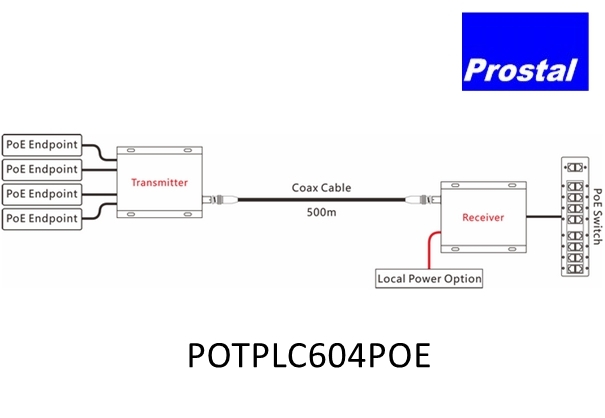

POTPLC604POE is an easy way to power up to four PoE-capable devices over a single cable run. By using OFDM frequency division multiplexing—this innovative system consolidates both power and data for up to four IEEE802.3af/at devices across distances of 500 meters. Enjoy reduced installation costs, simpler cabling, and reliable performance in one cost-effective solution.
Key Features & Benefits
1. 4 PoE Devices, 1 Cable
● Transmit data and power for up to four IP devices (cameras, intercoms, etc.) simultaneously using a single coax or two-wire cable.
● Frees you from running multiple lines, cutting down on cabling clutter and deployment complexity.
2. Long-Distance PoE Extension
● Reach up to 500 meters—well beyond the standard 100-meter Ethernet limit.
● Ideal for large campuses, remote security deployments, or industrial sites.
3. Plug-and-Play Transparency
● Comes in a desktop-friendly format with options for wall or 35mm DIN-rail mounting.
● No extra configuration required, thanks to transparent pass-through of IP protocols.
4. Advanced OFDM Modulation
● OFDM frequency division multiplexing sends high-speed network signals and low-frequency power along a single line.
● Ensuring stable communication even in electrically noisy environments.
5. Intelligent PoE Management
● On-board PoE chip automatically detects power needs and adjusts voltage/current output as required.
● Complies with IEEE802.3af/at standards for consistent performance.
Ideal Applications
● Security & Surveillance: Consolidate multiple IP cameras on one long coax feed, cutting install time and safeguarding against interference.
● Multi-Device Intercoms: Seamlessly power several access control panels or video intercom systems in office buildings or residential complexes.
● Campus & Industrial Deployments: Deploy in large facilities or remote sites without laying new ethernet cables for every device.
● Branch Networking & Retail: Link multiple PoE endpoints (like POS terminals, IP signage) using existing coax or two-wire lines for a quick, budget-friendly setup.
