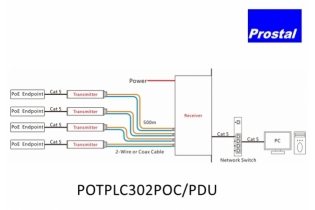

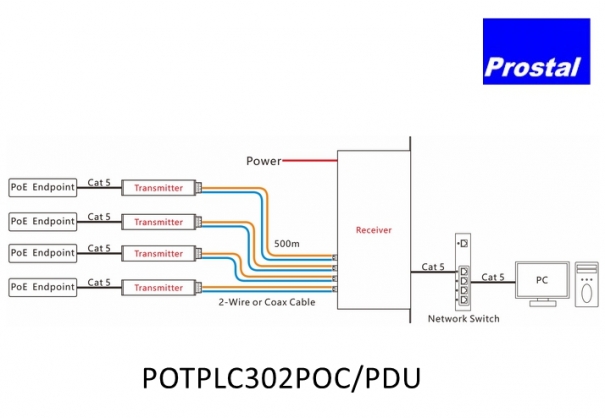

POTPLC302POC/PDU is a 4-Ch Ethernet & Power Receiver Hub. Designed to work in tandem with single-port PoE transmitters, this rack-mounted solution handles up to four concurrent lines, providing up to 30W per line for IP cameras, intercoms, access points, and other IEEE802.3af/at devices—all via existing two-wire or coax cables.

Key Features & Benefits

1. Multi-Line PoE Efficiency

● Consolidate four PoE lines into a single chassis—ideal for large-scale installs or multi-device environments.

● Cut down on cluttered wiring, lower material costs, and shrink your installation footprint.

2. Long-Distance Capability

● Achieve distances of up to 500 meters, significantly beating standard 100m Ethernet limits.

● OFDM frequency-division multiplexing combines high-speed data and low-frequency power on one cable.

3. Centralized High Power Output (160W)

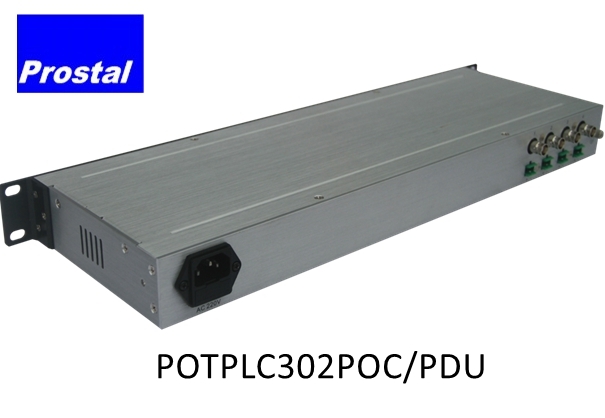

● The chassis accommodates up to 100–240 VAC input—no separate adapter needed.

● Delivers up to 160W total, with each of the four lines supplying up to 40W for PoE endpoints.

4. Plug-and-Play Simplicity

● Transparent transmission requires no advanced setup—just mount, connect, and power on.

● Built-in PoE management chip auto-detects and adjusts power based on each device's requirements.

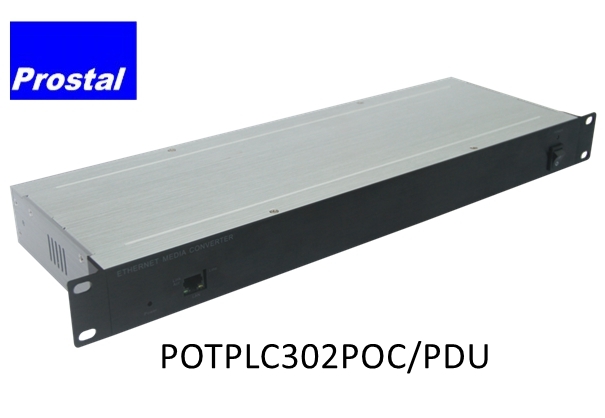

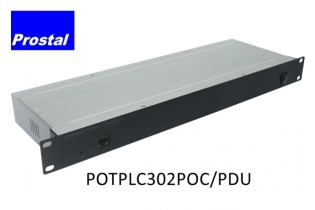

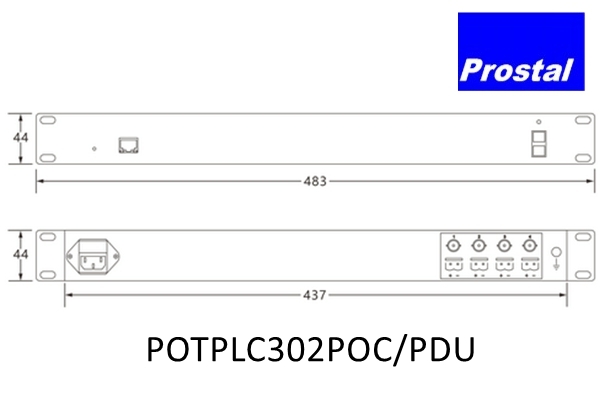

5. Standard 19-Inch Rack Design

● Mount directly into server racks or data center cabinets for a clean, professional installation.

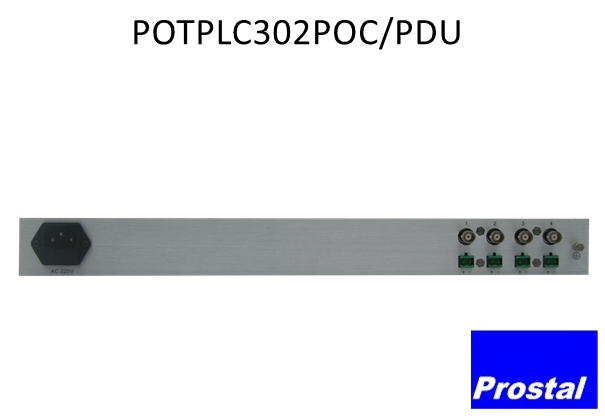

● 2P/BNC dual interfaces let you choose whichever cable type suits your setup (two-wire or coax).

Ideal Applications

● PoE Video Intercoms & Cameras: Centrally power multiple entry stations or security cameras without separate power feeds.

● Wireless AP Deployment: Distribute PoE to multiple access points in expansive commercial or industrial facilities.

● Long-Distance Connectivity: Easily bridge over 500 meters for remote outbuildings, parking lots, or site perimeters.

● Campus & Enterprise Networks: Tidy up wiring in a single rack while supplying robust power to distributed PoE gear.
