* Comply with IEC,EIA/TIA, Telcordia
* Low Insertion loss
* High precision of Mechanical Dimensions
* RoHS compliance
* Options: with or without flange, with or without metal clip, with or without assembly easy slot
* Not a welding type adaptor. No risk of sleeve broken
Applications:
* FTTx
* Internet Big Data Storage
* Data Center
* Teleommunication Networks
* Fiber LAN
* Optical Communication Equipment
* Cloud Computing
Specifications
| Type | Parameter |
| Insertion Loss (dB) | ≦0.1dB or ≦0.2dB |
| Repeatability (dB) | ≦0.1dB |
| Mechanism Durability (500cycles, dB) | ≦0.2dB |
| Temperature Range | -40~+85℃ |
| Sleeve Material | Ceramic (Zirconia) |
| Colors available | Blue, Green, Beige, Aqua, Magenta |
Product Drawings

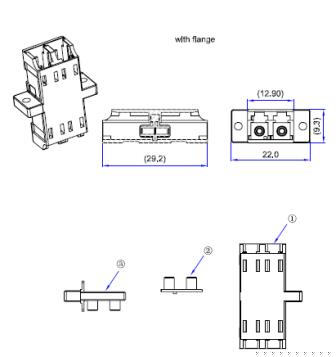

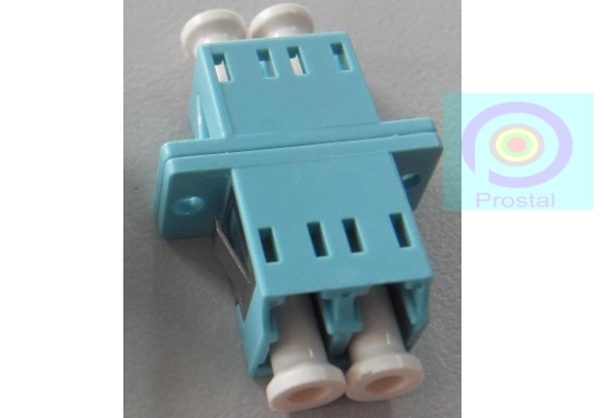

LC Duplex adaptor, with SC simplex footprint, with flange

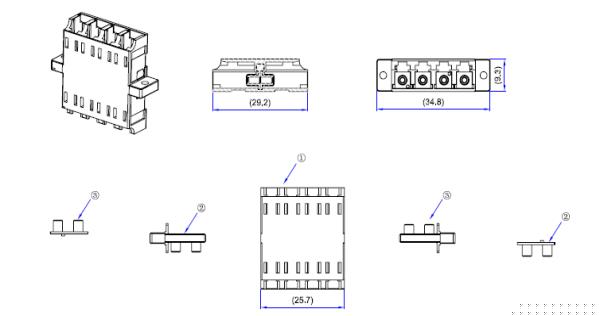

LC Quad, SC duplex footprint
