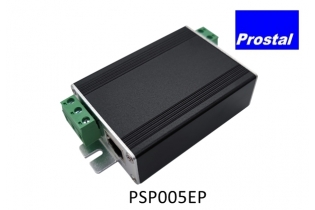

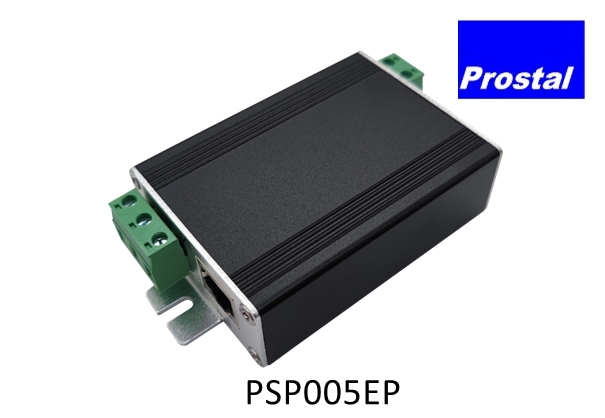

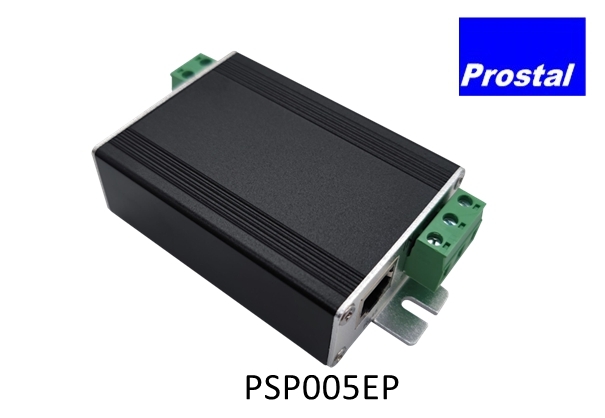

PSP-005EP is Ethernet & Power Surge Protector. It adopts a three-stage protection system to suppress overvoltage and surge currents in network cables. It features an independent grounding terminal to ensure stable communication while handling up to 10kA surge current, effectively protecting network equipment.

Installation

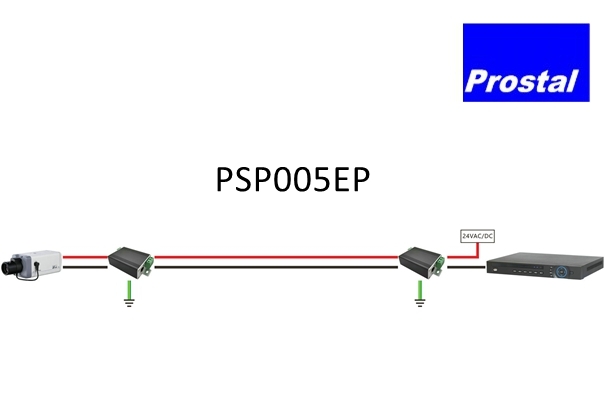

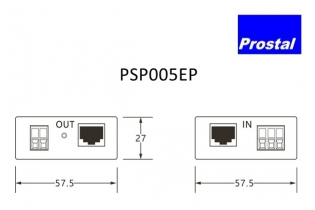

No external power supply is required. Install in series by connecting the protected device to the OUT port, the network line to the IN port, and the ground wire to a grounding busbar or point.

When a surge enters, excess voltage is absorbed and discharged through primary discharge, voltage limiting, and voltage clamping, ensuring only a safe voltage reaches network devices.

Product Features

1. Standard RJ45 Ports – Supports Cat5, Cat5e connectors.

2. Phoenix Terminal Power Port (2P) – Provides secure and stable power connectivity.

3. 4-Pin Protection – Supports 100M communication, ensuring stable data transmission.

4. High-Quality Components – Premium surge protection elements extend lifespan to approximately five years.

5. Low Insertion Loss – Less than 0.2dB, maintaining high-quality network signal transmission.

6. Standard Desktop Installation – Designed for stable and easy placement.

7. Durable Aluminum Alloy Housing – Enhances heat dissipation and fire resistance.

8. Compact Design – Ideal for installation in limited spaces.

Applications

Widely used in security surveillance, telecommunications, data centers, transportation networks, and industrial automation.

Compatible with 100/1000Mbps network devices, including network switch, IP camera, web server, IP intercom systems, computers.

Provides reliable protection against lightning and power surges, ensuring stable network operation.
